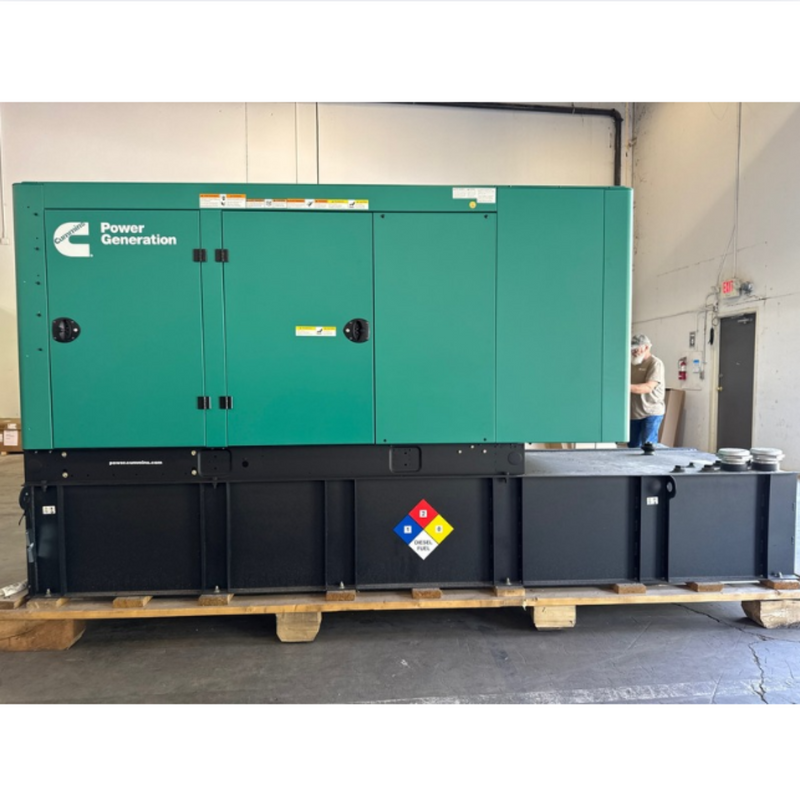

Load image into Gallery viewer, Cummins diesel generator with green housing and 24-hour subbase fuel tank

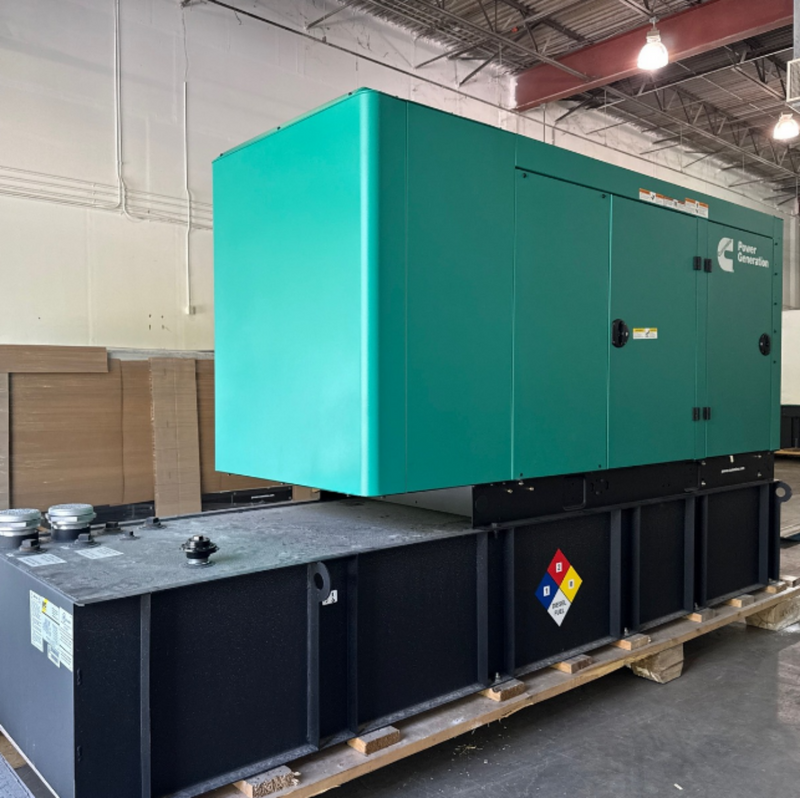

Load image into Gallery viewer, Cummins diesel with green housing and 24-hour subbase fuel tank
Load image into Gallery viewer, Cummins engine view

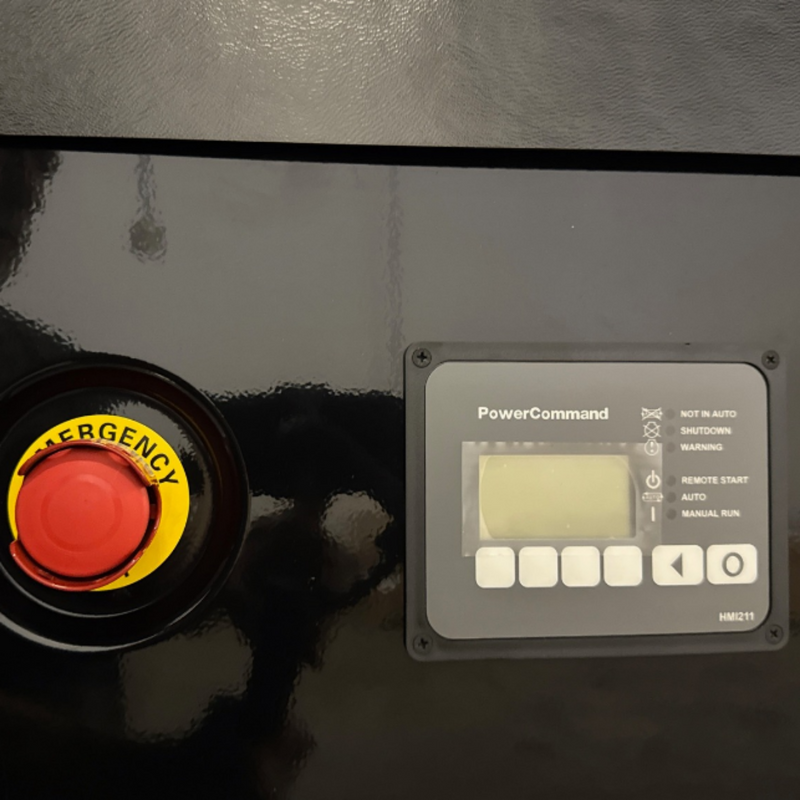

Load image into Gallery viewer, Cummins diesel diesel generator controller and e-stop

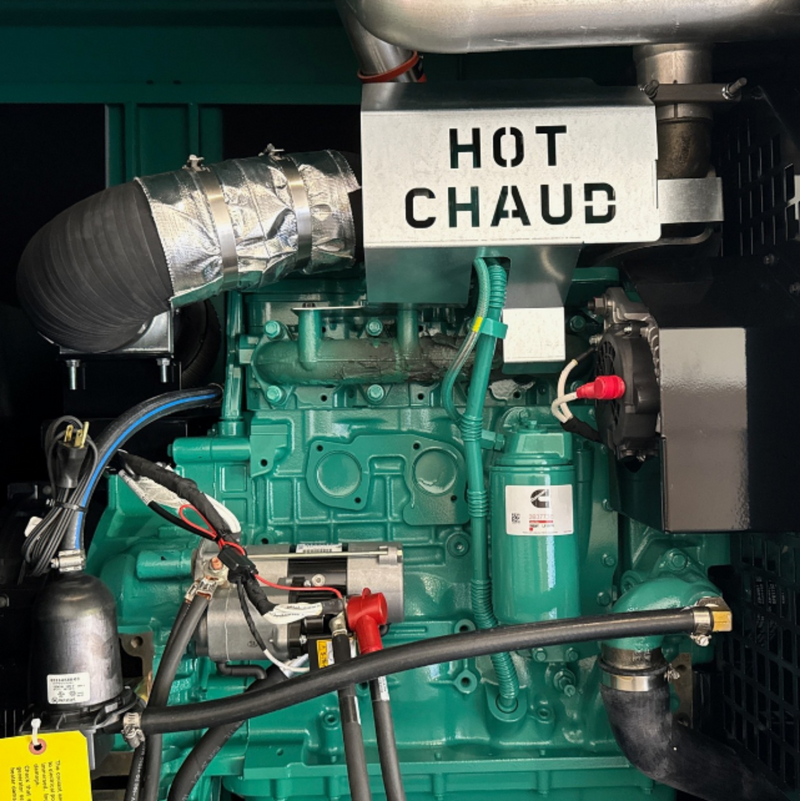

Load image into Gallery viewer, Cummins diesel engine view
Load image into Gallery viewer, Cummins Diesel Industrial Generator

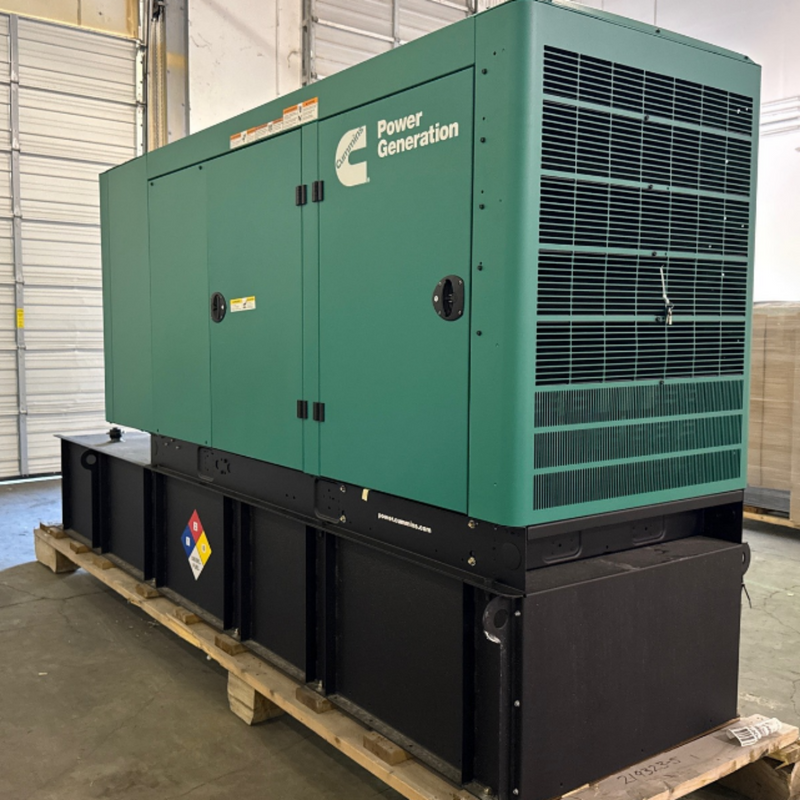

Load image into Gallery viewer, Cummins diesel commercial generator

Cummins 80kW C80D6C Diesel Commercial Generator, 120/208V 3-Phase

Vendor Cummins
Call for Pricing
Color:
Green Aluminum Sound Enclosure
This is a pre order item. We will ship it when it comes in stock.

120/208V 3-Phase Diesel Standby Power Solution for Businesses

Model: C80D6C | Power Output: 80kW | Voltage: 120/208V 3-Phase

Expected Availability: November 7, 2025

When your business depends on uninterrupted power, the Cummins C80D6C diesel generator delivers the reliability you need. This 80kW standby power system is engineered specifically for commercial and industrial applications where downtime isn't an option.

Built for Business Continuity

The C80D6C combines Cummins' legendary diesel engine reliability with advanced power generation technology. This fully integrated system provides optimum performance and versatility for stationary standby applications, meeting the most stringent industry standards including U.S. EPA Tier 3, UL 2200, and NFPA 110 Type 10 certifications.

Complete Package Ready to Install

This generator arrives ready for installation with everything you need for immediate deployment. The unit features a Level 1 aluminum sound enclosure rated for 180 mph wind loads per ASCE 7-10 standards, plus an integrated 24-hour subbase fuel tank for extended runtime capability.

Key Features & Benefits

Proven Cummins Engine Technology

At the heart of this system is a rugged 4.5L inline 4-cylinder industrial diesel engine. The liquid-cooled, cast iron block design operates at 1800 RPM for quiet performance and exceptional durability. This heavy-duty engine responds quickly to load changes while maintaining low emissions and reliable power output.

Advanced Alternator Design

The generator features a brushless alternator with 2/3 pitch windings that delivers superior motor starting capability. This design minimizes waveform distortion when powering nonlinear loads and provides excellent fault clearing short-circuit capability for enhanced protection.

Intelligent Control System

The PowerCommand 1.1 electronic control system provides complete generator management. Features include automatic remote starting and stopping, precise frequency and voltage regulation, comprehensive alarm and status displays, output metering, and automatic shutdown protection. The system meets NFPA 110 Level 1 compliance requirements.

Weather-Resistant Enclosure

The green Level 1 sound-attenuated aluminum enclosure protects all components while reducing noise levels. Designed to withstand extreme weather conditions, the enclosure meets 180 mph wind load requirements.

Extended Runtime Fuel System

The integrated 24-hour dual-wall subbase fuel tank is UL 142 and ULC-S601 listed for safety and reliability. This extended capacity tank ensures your facility stays powered during extended outages.

Specifications

  • Power Output: 80kW at 120/208V 3-Phase
  • Model: C80D6C
  • Fuel: Diesel
  • Fuel Tank Capacity: 134 gallons (24-hour runtime)
  • Enclosure: Level 1 Sound Attenuated
  • Control System: PowerCommand 1.1
  • Remote Monitoring: Available with optional accessory equipment and WiFi connection
  • Automatic Transfer Switch: Not included. See Cummins OTEC Series Switches
  • Weight (with fuel tank): 4,002 lbs
  • Dimensions (with fuel tank): 154"L × 40"W × 80"H

DOWNLOADS:

    Certifications & Standards

    This generator meets or exceeds all major industry certifications including U.S. EPA Tier 3 emissions standards, UL 2200 safety standards, NFPA 110 Type 10 emergency power requirements, and is Type 1 capable. Additional certifications include ISO 1001 and International Building Code (IBC) 2012 Seismic compliance.

    Warranty & Support

    Every C80D6C comes with Cummins' comprehensive 2-year or 1000-hour standby warranty, whichever comes first. Extended warranty options are available upon request to provide additional peace of mind for your investment.

    Perfect for Your Business

    Whether you're protecting a manufacturing facility, data center, healthcare facility, or any critical business operation, the Cummins C80D6C provides the reliable backup power you need. With decades of proven performance in the field, Cummins diesel generators are the trusted choice for businesses that can't afford downtime.

    Ready to ensure your business stays powered when the grid goes down? Contact Buckeye Power Systems today to discuss further or to place an order for your Cummins C80D6C diesel generator.
