Model 750DQCB | 277/480V 3-Phase | Steel Level 2 Sound Enclosure | 1500-Gallon Subbase Fuel Tank
✅ IN STOCK - Ready to Ship
Cummins 750kW Diesel Tier 2 Generator
This pre-configured system includes a steel Level 2 sound-attenuated enclosure and integrated 1500-gallon subbase fuel tank for immediate deployment.
Overview
The Cummins 750DQCB is a complete 750kW diesel generator system engineered for reliable standby and prime power in industrial applications. This fully integrated power generation solution delivers consistent performance and versatility where dependable electricity is critical.
Manufactured in ISO 9001/9002 certified facilities, this generator meets rigorous quality standards. The unit is tested and certified to current EPA emissions standards and UL safety standards.
Key Features
Heavy-Duty Cummins Engine

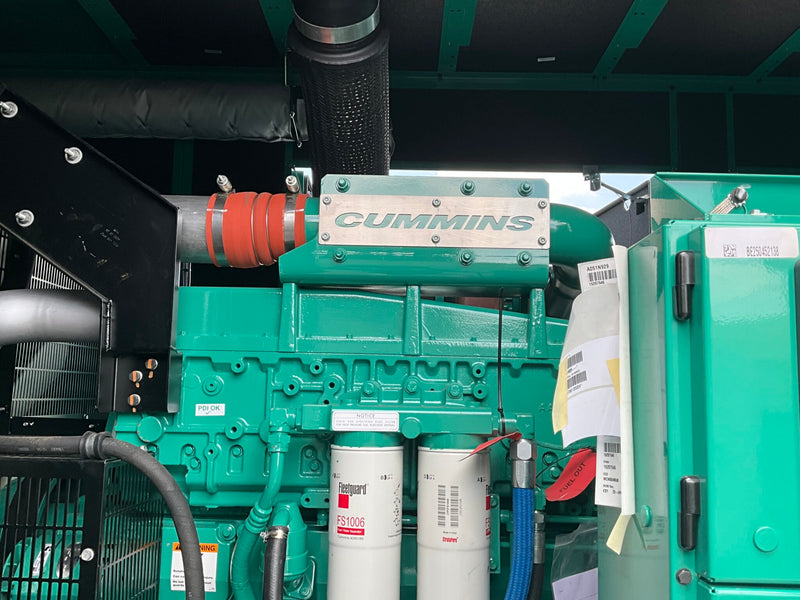

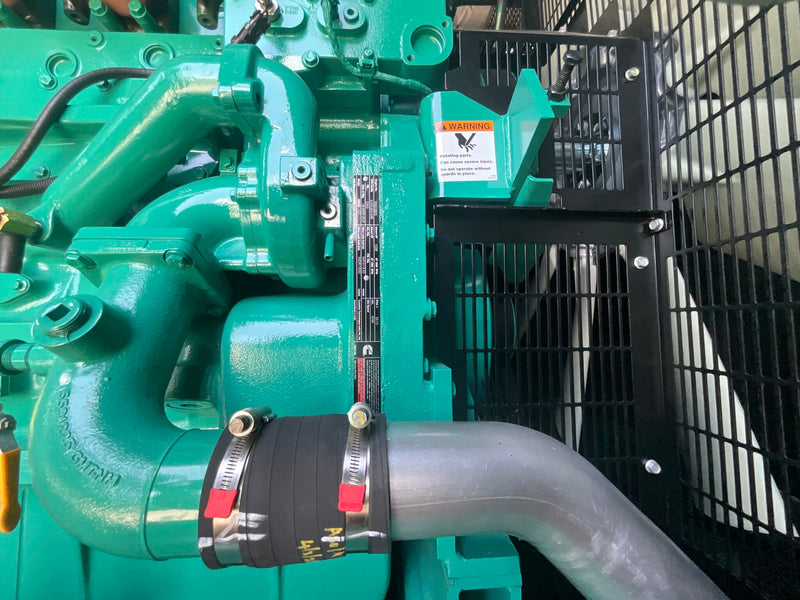

At the heart of this system is the Cummins QSK23 engine, a rugged 23.15-liter inline 6-cylinder industrial diesel engine. This 4-cycle powerplant delivers dependable performance with low emissions and responds quickly to changing load demands.
PowerCommand 2.3 Control System
The integrated PowerCommand 2.3 provides comprehensive generator management in one system. It handles voltage regulation, engine protection, generator protection, and operator interface with isochronous governing for precise frequency control. Features include automatic remote start/stop capability, accurate frequency and voltage regulation, alarm and status displays, output metering, automatic shutdown on fault detection, and full NFPA 110 compliance.
Permanent Magnet Generator (PMG)
The PMG excitation system provides superior motor starting capability and enhanced short-circuit fault clearing performance.

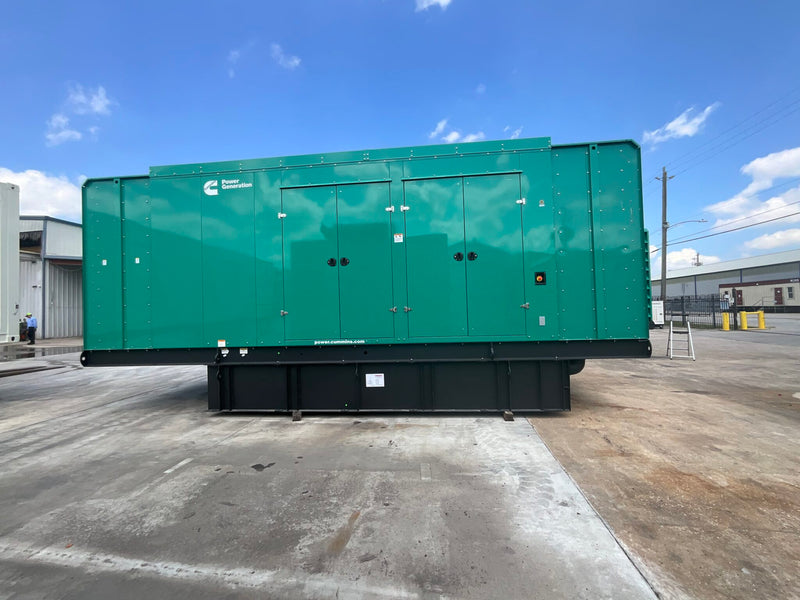

Steel Level 2 Sound Attenuated Enclosure
The durable steel Level 2 sound-attenuated enclosure shields the generator from the elements, enabling outdoor installation.
Integrated 1500-Gallon Subbase Fuel Tank
The built-in 1500-gallon subbase fuel tank provides approximately 29 hours of runtime at full load.
Physical Specifications
- Power Output: 750kW at 277/480V 3-Phase
- Model: 750DQCB
- Engine: Cummins QSK23-G7 NR2, 1413 cu. in., In-line, 6-Cylinder
- Fuel: Diesel
- Fuel Tank Capacity: 1500 gallons (29-Hrs. Run Time @ 100% Load)
- Enclosure: Steel Level 2 Sound Attenuated Enclosure
- Control System: PowerCommand 2.3
- Certifications: UL 2200, U.S. EPA Tier 2 Stationary Standby
- Remote Monitoring: Available with optional accessory equipment
- Automatic Transfer Switch: Not included. See Cummins OTEC Series Switches
- Dry Weight (with fuel tank): 31,139 lbs
- Dimensions (with fuel tank): 315"L x 101"W x 146"H
DOWNLOADS:
750DQCB Diesel Generator - Specs, Build Sheet, Drawings
Warranty & Support
This generator includes a 2-Year Standby Warranty (whichever occurs first). Extended warranty options are available for additional protection.
Additional Information
- Automatic Transfer Switch: Not included with this unit. Compatible Cummins OTEC Series transfer switches are available separately.
- Remote Monitoring: Remote monitoring capabilities are available with optional accessory equipment and WiFi connectivity.
- Brand: Cummins
- Model: 750DQCB
Secure Your Power Now!
Contact Buckeye Power Systems today to discuss transfer switch options, shipping, and how this generator can protect your business operations.
