Arrival Date: 02/28/2025
NOTE: We have a 120/208V 3-Phase Unit En-route that can be converted to 277/480V 3-Phase. Call for details.

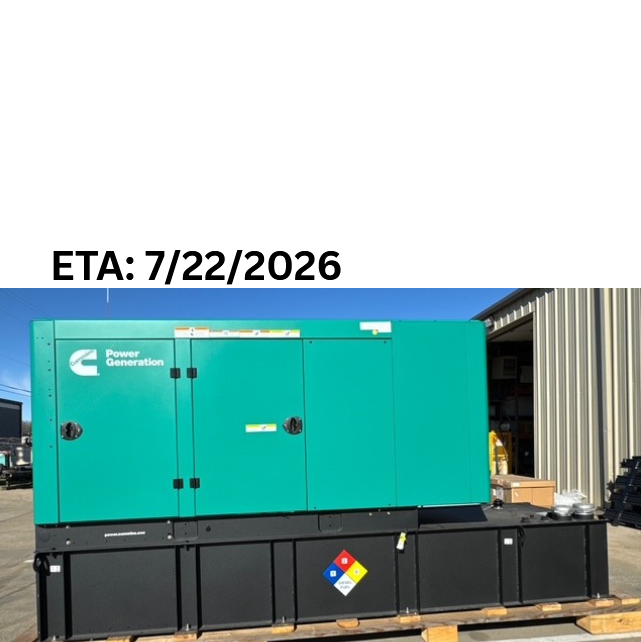

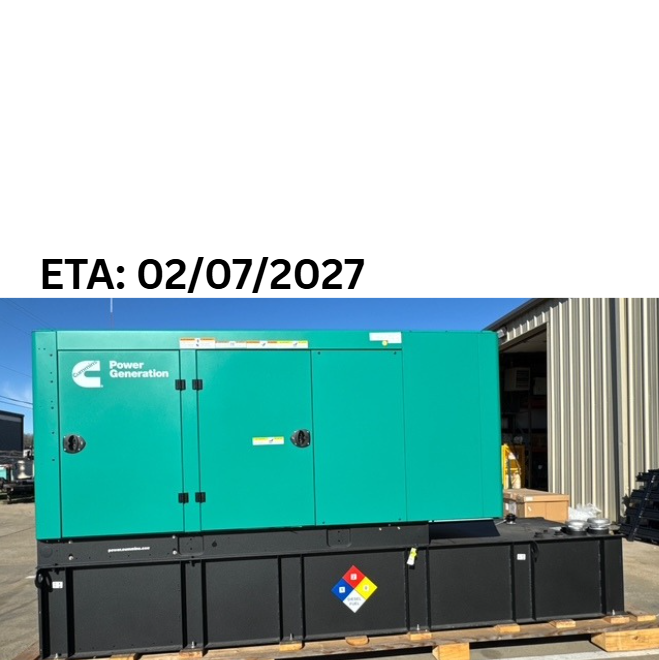

Cummins C80D6C Diesel Industrial Generator - 80kW @ 277/480V 3-Phase, Level 1 Sandstone Aluminum Sound Enclosure with 180 mph Wind Load per ASCE 7-10, Cummins 80kW Diesel Generator sets are fully integrated power generation systems providing optimum performance, reliability and versatility for stationary standby power applications. Certified U.S. EPA Tier 3, UL 2200, NFPA 110 Type 10, Type 1 Capable.

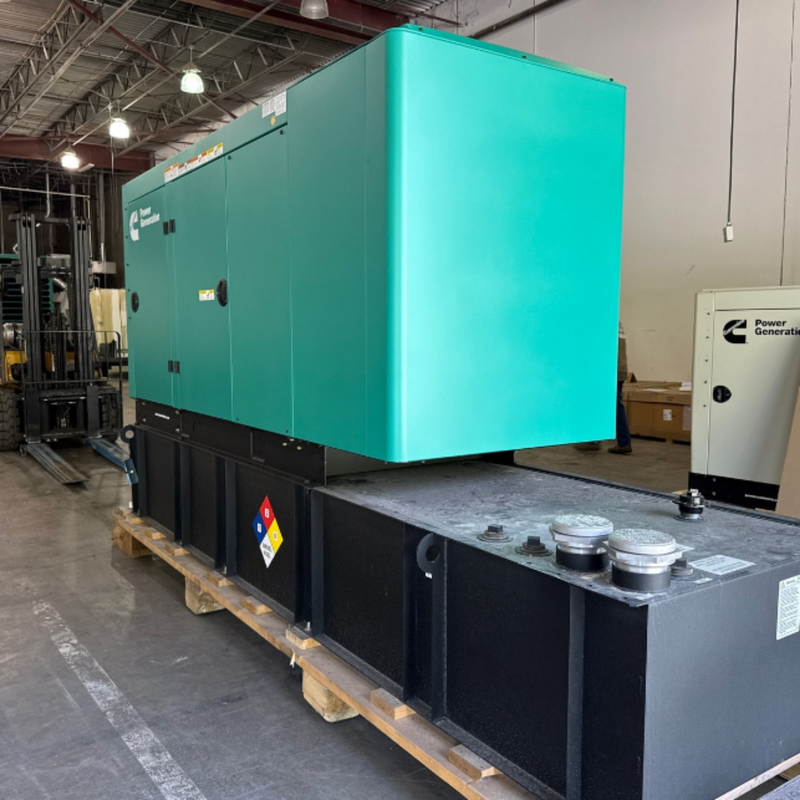

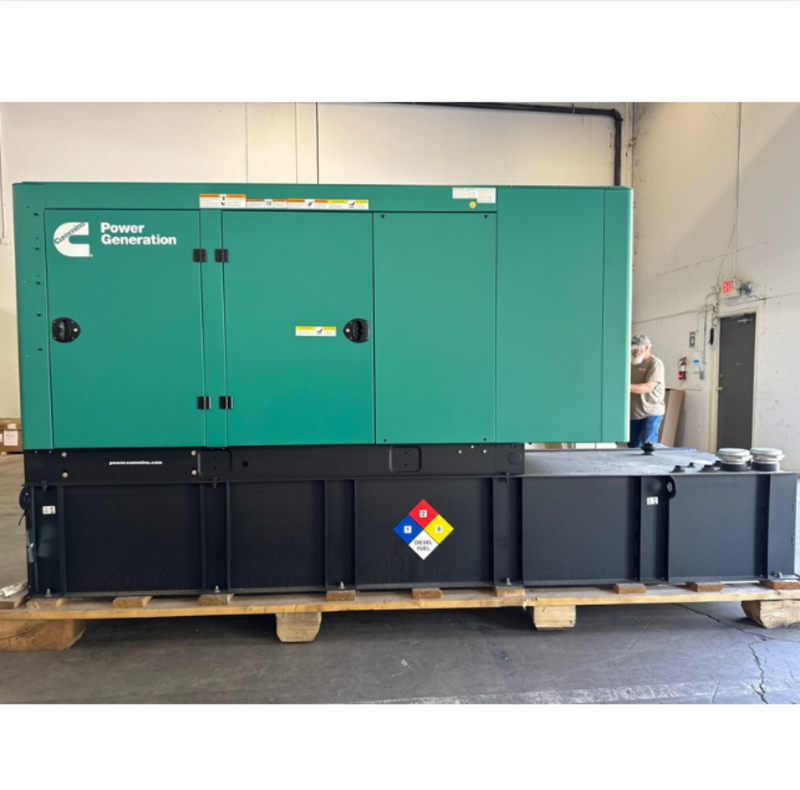

This Cummins 80kW Diesel Generator unit comes pre-configured with a Level 1 Aluminum Sound Enclosure and 24-hour subbase fuel tank.

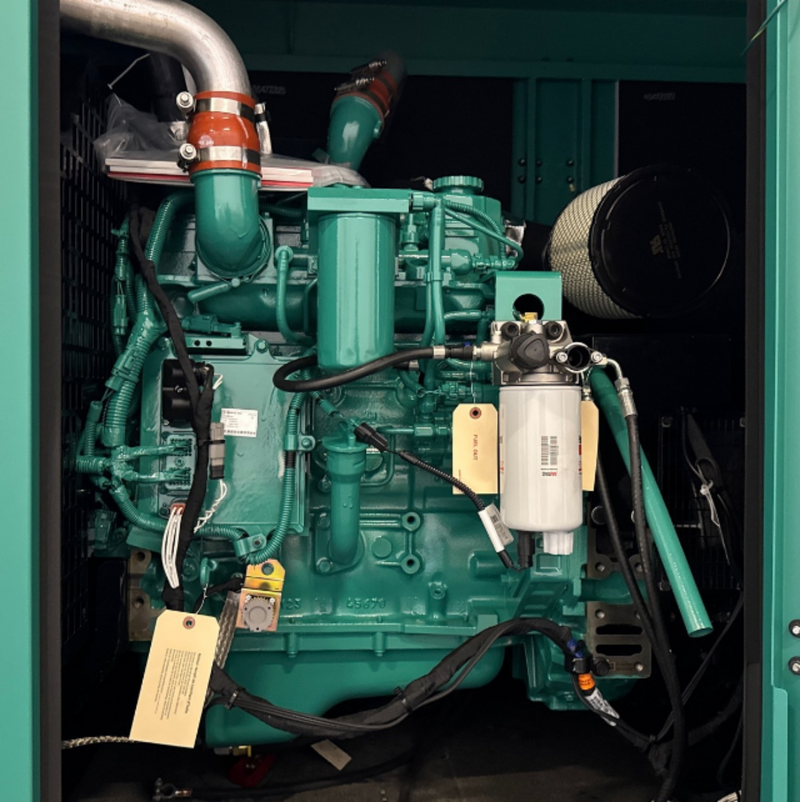

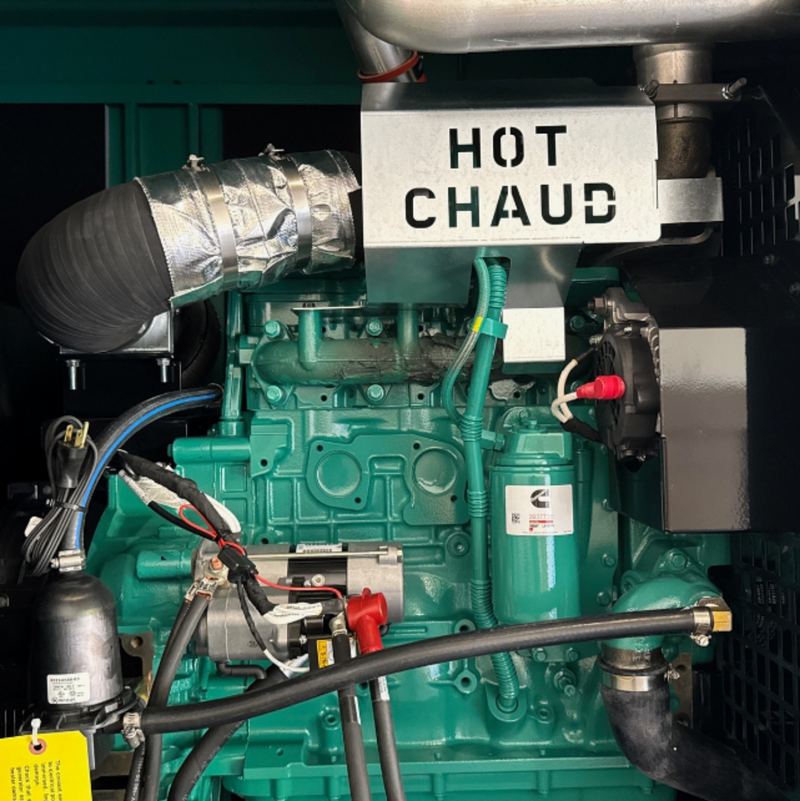

- Cummins Heavy-Duty Engine – Rugged 4-cycle industrial, liquid-cooled, industrial diesel engine delivers reliable power, low emissions and fast response to load changes. 4.5L in-line 6-cylinder with cast iron engine block, 1800 RPM engine operation offers quiet performance and superior durability.
- Alternator – Offers superior motor starting capability with low reactance 2/3 pitch brushless windings, low waveform distortion with nonlinear loads and fault clearing short-circuit capability.

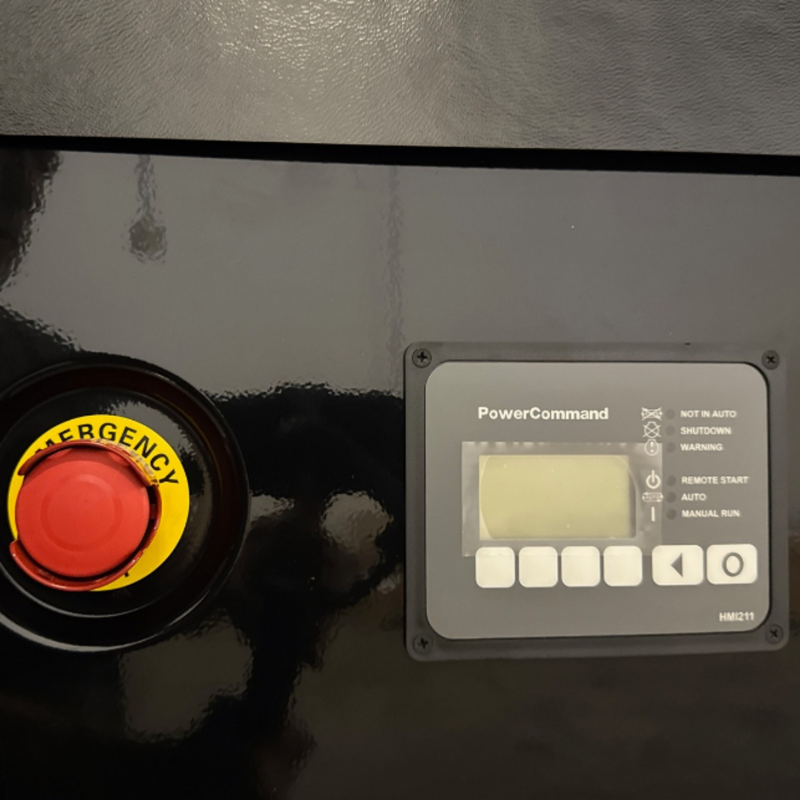

- Control System –The PowerCommand 1.1 electronic control is standard equipment and provides total generator set system integration including automatic remote starting/stopping, precise frequency and voltage regulation, alarm and status message display, output metering, auto-shutdown at fault detection and NFPA 110 Level 1 compliance.

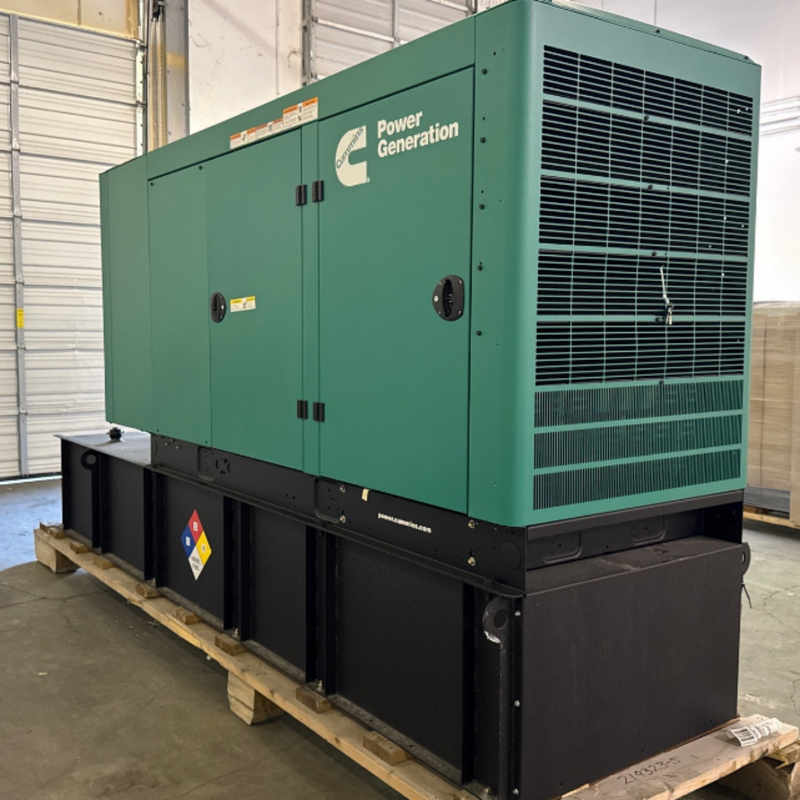

- Enclosure – Sandstone Level 1 Sound Attenuated Enclosure.

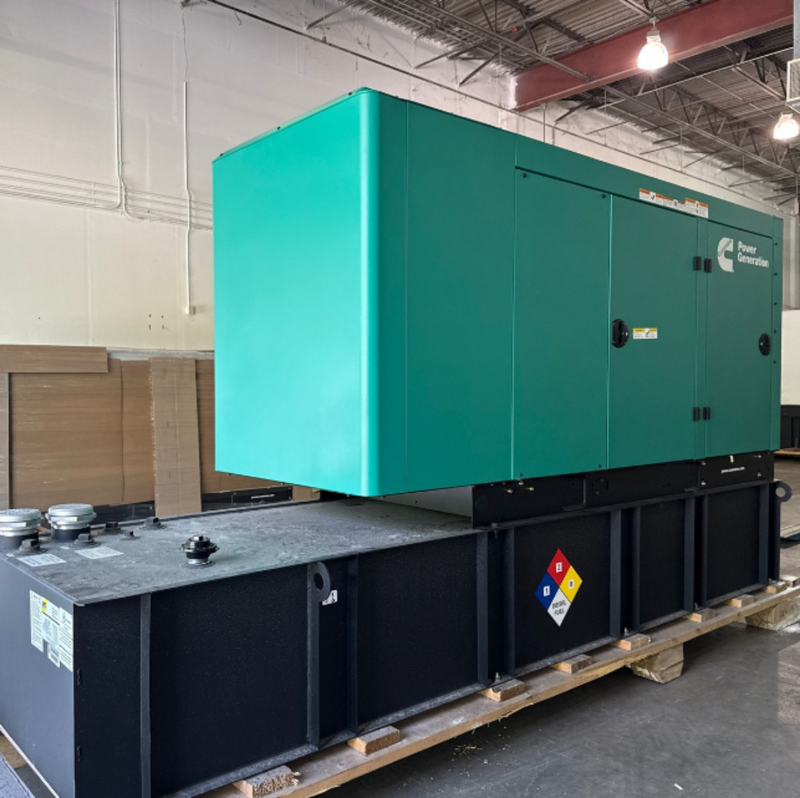

- Fuel Tank - 24-hour subbase dual-wall fuel tank is UL 142 and ULC-S601 listed.
- Certifications - U.S. EPA Tier 3, UL 2200, NFPA 110 Type 10, Type 1 Capable. ISO 1001, International Building Code (IBC) 2012.
- 2-Years or 1000-Hours Comprehensive Standby Warranty - Optional Extended Standby Warranties available upon request.
BRAND |
Cummins |
STYLE |
Diesel |
MODEL |
C80D6C |
RATED KW |
80kW |
VOLTAGE |
277/480V 3-Phase |
WEIGHT INCL. FUEL TANK |
4002 LB. |
DIMENSIONS INCL. FUEL TANK |
154"L x 40"W x 80H |
REMOTE MONITORING AVAILABLE |
Yes |
AUTOMATIC TRANSFER SWITCH |
Not Included |
