Model: Onan QG7000 EVAP - A063B639 - 7HGJAE-2132 | 120V | Watts - 7000W GASOLINE | RPM - 2880 | Circuit Breaker: 30A 2-POLE
✅ IN STOCK - 3-5 DAY LEAD TIME

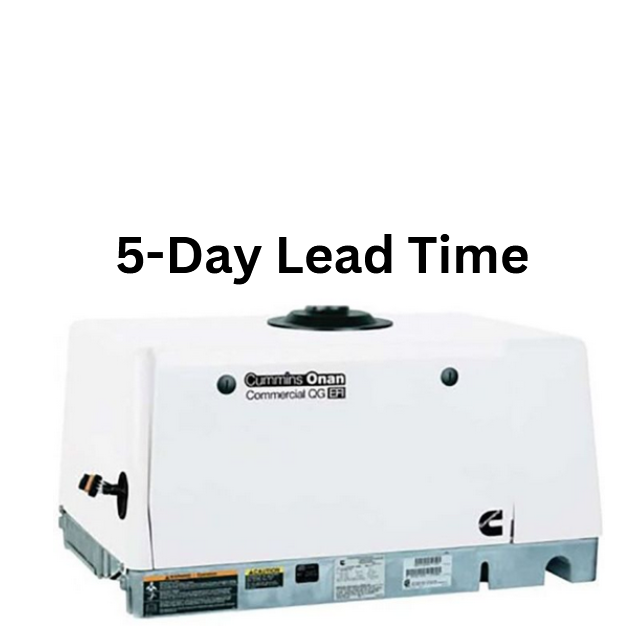

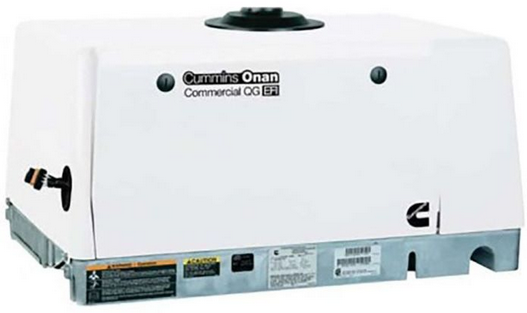

Cummins Onan QG7000 Gasoline Commercial Mobile Generator - 120V
5-Day Lead Time
Generating Support Across Commercial Mobile Markets
- Animal Care
- Broadcasting
- Communications & Telecom
- Emergency Vehicle
- Food Trucks
- Oil & Gas
- Pipeline
- Railroad
- Utility
For maximum power in minimal space, no one sizes up to the efficiency of Cummins Onan
generators. Commercial Mobile Onan Generators come with an excellent warranty and a worldwide service network.
QG7000 Features and Benefits:
- Integrated hydraulic pump option
- Quietest and lowest vibration generator set in its class
- Integrated housing design
- Enclosed muffler for ease of installation
- Self-diagnostic capability to simplify troubleshooting
- Runs two ACs with power to spare
- Digital regulation for voltage stability as loads change
- 2-year limited warranty, 5-year drive warranty
QG7000 Gasoline EVAP Specifications
Physical Dimensions
- Weight: 299 lbs
- Size (L×W×H): 33.6" × 22.2" × 16.7"
- Sound: 70 dB(A) at 10-feet, half-load
Typical installation will further reduce sound level.
Alternator
- Design: Cummins Onan revolving field, AC, 2-pole self-excited, two bearing design
- Insulation system and temperature rise: Meets ANSI/RVIA-EGS-1-1998 and CSA TIL RV-06 requirements.
- Cooling: Direct drive centrifugal blower, cast aluminum housing for excellent heat transfer.
- Rotor: Laminated electrical steel assembly press-fitted to shaft, balanced. Heavy insulated copper wire windings; optimized air gap for improved waveform and motor starting.
- Stator: Laminated electrical steel assembly, skewed for better waveform; heavy insulated copper wire windings.
- Excitation: Capped, digital voltage regulation
- DC brushes: Electrographite; long life
- Bearing: Double-sealed, pre-lubricated ball bearing
-
Hydraulic pump:
- Fixed displacement gear pump, 1.5 Gal/min at 2500 psi
- A generator set with a hydraulic pump is rated with the pump idle
- When using a non-Cummins pump supplied by the customer, the hydraulic pump shaft seals must be capable of operating in a temperature environment of 225° F to 250° F. Seal failure will result in equipment damage
Engine
- Configuration: Cummins Onan 4-cycle, OHV, 90-degree V-twin
- Displacement: 39.8 cubic inches
- Maximum Power: 14 HP at 2880 RPM
- Starting System: Remote, 12 V, 3-wire, negative ground automotive type starter with steel pinion and ring gear, automatic start disconnect, connector for remote start cable, start-stop rocker switch mounted on set control
- Ignition System: Electronic magneto type with resistor plugs
- Oil Capacity: 2.0 quarts
Fuel Consumption (GASOLINE)
- No Load: 0.42 GPH
- Half Load: 0.73 GPH
- Full Load: 1.22 GPH
Warranty
2-Years or 2,000 Hours (whichever occurs first) Limited Warranty. Parts and labor will be covered for warrantable failures except routine maintenance during two years warranty coverage period.
Availability
In Stock - Call Buckeye Power Systems today for a shipping quote and get your commercial mobile operation powered up.
Experience the reliability and performance that has made Cummins Onan the preferred choice of commercial mobile operators.
