Model: Onan QG5500 EFI - A075L019 I 5.5HGJAD-2274 | 120V | Watts - 5500W GASOLINE | RPM - 2400 | Circuit Breaker: 30A 2-POLE
✅ IN STOCK - 3-5 DAY LEAD TIME

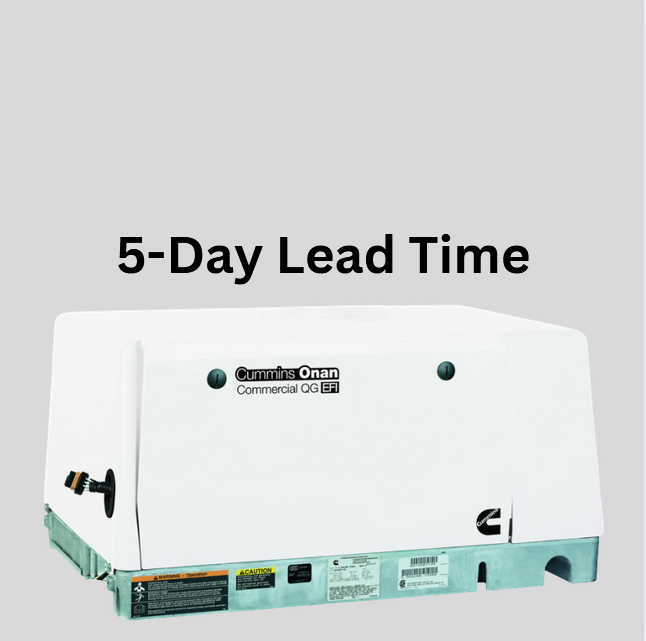

Cummins Onan QG5500 Gasoline EFI/EVAP Commercial Mobile 120V
CARB Compliant
Designed for tough commercial applications, the Cummins Quiet Gas Series generators are loaded with quality features. These include exceptionally low noise and vibration, easy installation, diagnostic capability, and digital regulation which maintains voltage stability as loads change. The Quiet Gas EFI is the first Electronic Fuel Injection generator set in the industry.
Note:
- Evaporative control model required for applications using a fuel tank separate from the propulsion engine.
- EFI units do not include a fuel pump - must order one of the fuel system kits.
Features and Benefits:
- EFI provides improved hot and cold start capability
- Quietest and lowest vibration generator set in its class
- Integrated housing design
- Enclosed muffler for ease of installation
- Self-diagnostic capability to simplify troubleshooting
- Runs two ACs
- Digital regulation for voltage stability as loads change
- Electronic governor for voltage stability and frequency control
- 2-year limited warranty
QG5500 EFI Specifications
Physical Dimensions
- Weight: 290 lbs
- Size (L×W×H): 33.6" × 22.2" × 16.7"
- Sound: 66 dB(A) at 10-feet, half-load
Typical installation will further reduce sound level.
Alternator
- Design: Cummins Onan revolving field, AC, 2-pole self-excited, two bearing design
- Insulation system and temperature rise: Meets ANSI/RVIA-EGS-1-1998 and CSA TIL RV-06 requirements.
- Cooling: Direct drive centrifugal blower, cast aluminum housing for excellent heat transfer.
- Rotor: Laminated electrical steel assembly press-fitted to shaft, balanced. Heavy insulated copper wire windings; optimized air gap for improved waveform and motor starting.
- Stator: Laminated electrical steel assembly, skewed for better waveform; heavy insulated copper wire windings.
- Excitation: Capped, digital voltage regulation
- DC brushes: Electrographite; long life
- Bearing: Double-sealed, pre-lubricated ball bearing
-
Hydraulic pump:
- Fixed displacement gear pump, 1.5 Gal/min at 2500 psi
- A generator set with a hydraulic pump is rated with the pump idle
- When using a non-Cummins pump supplied by the customer, the hydraulic pump shaft seals must be capable of operating in a temperature environment of 225° F to 250° F. Seal failure will result in equipment damage
Engine
- Configuration: Cummins Onan 4-cycle, OHV, 90-degree V-twin
- Displacement: 39.8 cubic inches
- Maximum Power: 11.6 HP at 2400 RPM
- Starting System: Remote, 12 V, 3-wire, negative ground automotive type starter with steel pinion and ring gear, automatic start disconnect, connector for remote start cable, start-stop rocker switch mounted on set control
- Ignition System: Electronic magneto type with resistor plugs
- Oil Capacity: 2.0 quarts
Fuel Consumption (GASOLINE)
- No Load: 0.35 GPH
- Half Load: 0.6 GPH
- Full Load: 0.95 GPH
Operating Temperature Range
- Minimum: -20°F (-29°C)
- Maximum: 120°F (49°C)
Warranty
2-Years or 2,000 Hours (whichever occurs first) Limited Warranty. Parts and labor will be covered for warrantable failures except routine maintenance during two years warranty coverage period.
Availability
In Stock - Call Buckeye Power Systems today for a shipping quote and get your commercial mobile operation powered up.
Experience the reliability and performance that has made Cummins Onan the preferred choice of commercial mobile operators.
