Buckeye Power Systems offers the C150D2RE - a fully integrated mobile power generation system built for demanding standby and prime power applications. Powered by the Cummins QSB7-G9 engine and housed in a road-ready rental enclosure, it delivers the output, runtime, and control features required for serious job site and event power needs.
Downloadable Product Specifications:
C150D2RE Specifications
Cummins Towable Product Line Specs
Cummins Rental Power Brochure
Physical Specifications
- Engine: 6.69L, 6-cylinder, 4-cycle in-line Cummins diesel, turbocharged and after-cooled
- Dimensions (with trailer): 226" L × 84" W × 91" H
- Weight without fuel: 8,270 lbs
- Weight with fuel: 10,000 lbs
- Fuel capacity: 255 gallons
- Emissions: U.S. Tier IV Final and EU Stage IIIa certified
Engine & Fuel System
The QSB7-G9 engine meets Tier IV Final and EU Stage IIIa emissions standards without requiring a diesel particulate filter (DPF). A high-pressure common rail fuel system reduces engine noise and smoke, while advanced electronic controls with an integrated after-treatment system improve fuel efficiency and lower emissions.
Two-stage fuel filtration provides optimum particle and water separation. Cummins Direct Flow™ air filtration extends service life and simplifies maintenance. The dual-speed engine operates at both 50 and 60 Hz.
Maintenance Cycle 500 Hours
Improved from Tier 2 maintenance cycle of 250 hours. Allows for fewer filter changes and more uptime.
Fuel Consumption:
Reduced operational costs vs. Tier 2 mobile power generators
At Full Load: 8.9 gph
75% Load: 6.4 gph
50% Load: 4.0 gph
25% Load: 2.4 gph
Alternator
Stamford 12-lead reconnectable alternator with a voltage selection switch. Permanent magnet excitation ensures stable performance under non-linear load conditions.
Generator Set Controls
The C150D2RE features PowerCommand 3.3© with Masterless Load Demand (MLD) technology, which automatically adapts power output to match varying load demand. MLD-capable units can share operational data among paralleled generator sets for smarter, more efficient site power management. A single, easy-to-operate interface delivers precise frequency and voltage regulation along with real-time alarm and status message display.
Engine Instrumentation
Oil pressure, coolant temperature, fuel level, DEF level, and battery voltage gauges. 5-digit digital hour meter. Engine control module includes remote start capability.

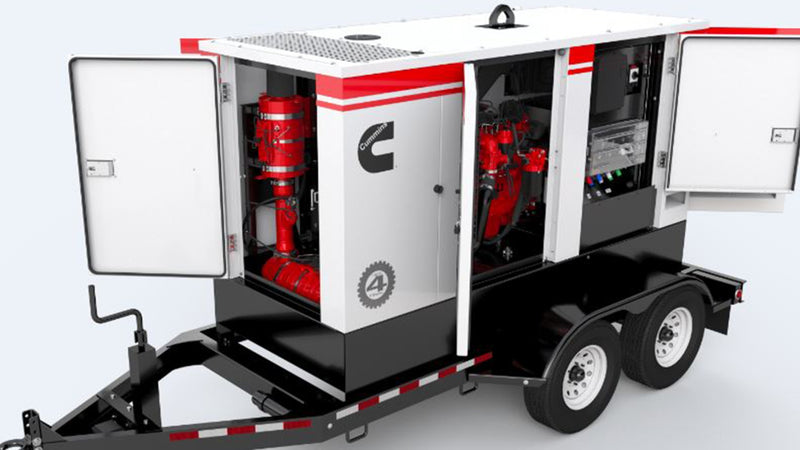

Rental Package Enclosure
Sound-attenuated, white powder-coated lockable enclosure with camlock and busbar distribution panel. Includes a 24-hour fuel tank (75% prime) with leak detection sensor, housed in a single-wall tank with a 110% fluid containment basin.
Voltage Selector Options
4-position switch (60 Hz): 277/480V 3-phase, 139/240V 3-phase, 120/208V 3-phase, or 120/240V 1-phase. First position also supports 50 Hz at 230/400V 3-phase.
2-position switch (60 Hz): 277/480V or 347/600V 3-phase.
Certifications
- Meets EPA guidelines in this horsepower category
- Approved by CARB (California Air Resource Board)
Options
- Auxiliary Fuel and DEF connections
- DOT approved electric brake trailer with heavy duty center mounted jack, ball or pintle hitch
- DOT approved hydraulic brake trailer with heavy duty center mounted jack, ball or pintle hitch
Warranty
1-year, unlimited hours or 3-years, 3,000 hours.
- Industry leading warranty covered by CSSNA locations
- 5-years or 5,000 hours (optional)
Contact Buckeye Power Systems to check availability, request a quote, or learn more about our full rental generator fleet.
