Model: Onan QD5000 - A055T686 I 5HDKBC-2860 | 120 Volts | Watts - 5000W DIESEL | RPM - 1800 | Circuit Breaker: 25A 2-Pole
✅ IN STOCK - 3-5 DAY LEAD TIME

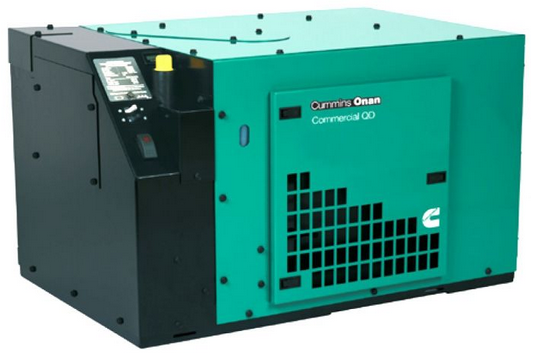

Cummins Onan QD5000 120V Quiet Diesel: Commercial Mobile Generator
Reliable Power Without Compromise
The Cummins Onan diesel lineup delivers exceptionally quiet performance and proven durability across multiple power ratings. With more than 100 years of expertise in power generation, Cummins engineers solutions designed specifically for demanding commercial operations.
Features and Benefits:
- Lower noise, vibration, harshness
- Up to 15 dB(A) is quieter than conventional diesel generator sets.
- Enclosed muffler for added quietness, easy installation.
- Self-diagnostic capabilities simplify troubleshooting.
- Service and maintenance points are accessible through easy-latch side service door.
- Convenient, top-mounted switches and coolant level check/fills.
- Automatic glow plug eliminates preheat time uncertainty.
Control System
- Microprocessor control
- Integrated generator set and engine control
- User and service personnel accessible diagnostics
- Fused DC circuits
- Over voltage safety
- Hour meter
- Low oil pressure safety
- Overspeed safety
- AC alternator over temp safety
- Automatic timed glow plugs based on ambient temperature
- One-touch stop
QD5000 Specifications
Physical Dimensions
- Weight: 400 lbs
- Size (L×W×H): 34.5" × 22.9" × 20.3"
- Sound: 68 dB(A) at 10 feet, half-load. Typical installation will further reduce sound level.
Alternator
- Design: Cummins Onan, revolving field, AC, 2-pole
- Insulation system: Class H
- Cooling: Direct drive centrifugal blower.
- Exciter System: Capped, digital voltage regulation
- Bearings: Double sealed, pre-lubricated ball bearing
Engine
- Configuration: Kubota Z482, liquid-cooled diesel engine
- Cylinders: 2, inline vertical
- Displacement: 29.23 cubic inches
- Maximum Power: 11.1 hp (8.3 kW) EPA Tier 4
- Starting System: Remote, 12V
- Oil Capacity: 2.0 quarts
Fuel Consumption
- No Load: 0.25 GPH
- Half Load: 0.39 GPH
- Full Load: 0.6 GPH
Eight decades of innovation, millions of satisfied RV and Commercial Mobile owners, and industry-leading reliability. When you demand the best, there's only one choice.Contact Buckeye Power Systems for shipping details and technical support from our experienced team.
