MODEL: OTEC600 (SPEC B) - A066Y116 | 277/480V 3-PHASE | NON-SERVICE RATED | NEMA3R ENCLOSURE

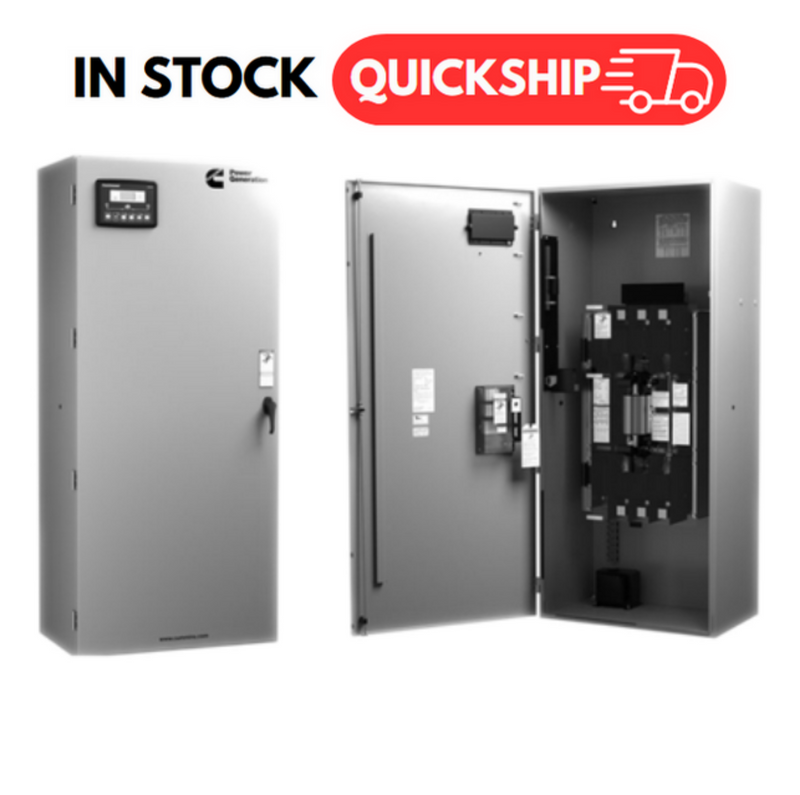

Cummins 600A Automatic Transfer Switch, NEMA3R
✅ IN STOCK - Ready to Ship
Product Overview
The Cummins 600A Spec B Transfer Switch from the PowerCommand OTEC Series delivers reliable emergency standby power for commercial and light industrial facilities. This 277/480V 3-phase, non-service rated unit features a weather-resistant NEMA3R enclosure and handles the essential functions you need: monitoring both your primary power source and generator, automatic generator starting, and seamless load transfer during power outages.
Designed for emergency, legally required, and optional standby circuits, this transfer switch is equipped with the advanced PowerCommand® 40-01 control system—a microprocessor-based controller featuring an LCD digital display and intuitive soft-touch buttons for straightforward operation.
Key Features
PowerCommand® 40-01 Control System
The heart of this transfer switch is its fully-featured microprocessor control with LCD screen. All settings, features, and adjustments are software-enabled, making setup accurate and hassle-free while providing comprehensive control for diverse applications.
Simplified Maintenance & Access
Service technicians will appreciate the thoughtful design: plug-style connections, door-mounted controls, generous access space, and clearly marked terminals make installation and maintenance straightforward.
Advanced Transfer Mechanism
A bi-directional linear motor actuator powers the switching mechanism, delivering smooth, friction-free operation with constant force and straight-line action. No complex gears or linkages mean fewer parts to fail and more reliable performance.
Manual Operation Capability
When needed, manual operating handles allow you to operate the switch under de-energized conditions. Shielded termination and over-center contact mechanisms ensure safe, effective manual control.
Safety Interlocking
Both mechanical and electrical interlocking systems prevent accidental source-to-source connection, protecting your equipment and facility from dangerous backfeeding through power or control wiring.
Specifications
- Current Rating: 600 Amps
- Voltage: 277/480V, 3-Phase
- Enclosure: NEMA3R (weather-resistant)
- Service Rating: Non-Service Rated
- Dimensions: 59.0" H × 27.5" W × 16.5" D
- Weight: 285 lbs
